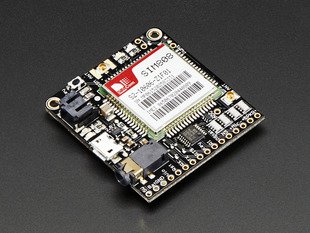

Adafruit FONA 808 - Mini Cellular GSM + GPS Breakout
Adafruit FONA 808 - Mini Cellular GSM + GPS Breakout
3 in stock
Description
Cellular
+ GPS tracking, all in one? Oh yes! Introducing Adafruit FONA 808
MiniGSM + GPS, an all-in-one cellular phone module with that lets you
add location-tracking, voice, text, SMS and data to your project in an
adorable little package. (It does not contain a drum machine, tho)
This
module measures only 1.75"x1.6" but packs a surprising amount of
technology into it's little frame. At the heart is a powerful GSM
cellular module (we use the latest SIM808) with integrated GPS. This
module can do just about everything.
- Quad-band 850/900/1800/1900MHz - connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested)
- Fully-integrated GPS (MT3337 chipset with -165 dBm tracking sensitivity) that can be controlled and query over the same serial port
- Make and receive voice calls using a headset or an external 32Ω speaker + electret microphone
- Send and receive SMS messages
- Send and receive GPRS data (TCP/IP, HTTP, etc.)
- PWM/Buzzer vibrational motor control
- AT command interface with "auto baud" detection
Here's the GPS specifications:
- 22 tracking / 66 acquisition channels
- GPS L1 C/A code
- Sensitivity: Tracking: -165 dBm, Cold starts : -147 dBm
- Time-To-First-Fix: Cold starts: 32s (typ.), Hot starts: 1s (typ.), Warm starts: 5s (typ.)
- Accuracy: approx 2.5 meters
Sounds
delicious, right? So we plated this fine module onto a little breakout
with all the extras you need to make your next project shine:
- Onboard
LiPoly battery charging circuitry so you can take your project on the
go. Use any 500mAh+ LiPoly or LiIon battery and recharge over the
MicroUSB when necessary. Two LEDs let you know when its charging and
done - Standard 4-pole TRRS headphone jack. Use any 'Android' or 'iPhone'-compatible headset with mic
- Breakouts for external 32Ω speaker and electret mic if you don't want to use a headphone
- Level shifting circuitry so you can run it with 2.8V to 5V logic.
- Vibrational motor (buzzer) driver so you can have noiseless notifications
- uFL connections for external antennas
- Indicator LEDs for power and network connectivity
- Standard SIM slides into the back
On
its own, this module can't do anything. It requires a microcontroller
to drive it! We suggest and use an Arduino but any 3-5V microcontroller
with a UART can send and receive commands over the RX/TX pins.
You will also need some required accessories to make FONA work. These are not included!
- Required SIM Card! A 2G Mini SIM card is required to do anything on the cellular network.
- Required Lipoly Battery - 500mAh or larger! This 500mAh battery, or this 1200mAh will work great.
- MicroUSB cable for charging the battery.
- External uFL GSM Antenna - this slim one works great.
There's also some recommended accessories. They are not required but chances are you'll want them!
-
TRRS 4-Pole Headset -
Any 'iPhone' or 'Android' compatible (but not iPhone original) should
work. We tried about 10 different ones, and basically the more expensive
once are more comfortable and louder but our official iPhone headset
mic did not work. - Vibrating motor - the FONA can drive this directly, just solder a mini vibrating motor disc in!
- USB console cable - the microUSB connector is for charging only, but you can wire up a console cable for direct-connection to the module if you want to send commands from a terminal (great for testing and tweaking)
More comprehensive information as well as downloads and more are on Adafruit tutorial!
