Xbee USB Adapter

12.500 KD

This low cost XBee USB Adapter Board comes in partially assembled kit form and provides a cost-effective solution to interfacing a PC or microcontroller to any XBee or XBee Pro module. The PC connection can be used to configure the XBee Module through Digi's X-CTU software. Works with XBee series 1 and 2 as well as Pro modules

By using this adapter board you can provide an easy interface to the XBee or XBee Pro modules by converting the 2mm pin spacing to breadboard friendly 0.100" spacing. The adapter board also provides a means to connect pluggable wires or solder connections and also provides mounting holes. Note: This product from Parallax uses genuine FTDI chips 10/23/14 (read more).


Provides an easy interface to configure XBee Modules using Digi's X-CTU software
Converts XBee 2mm pin spacing to 0.100" pin spacing
4 status indicator LEDs for Power, RSSI, Associate and mode (sleep/ON)
Provides easy pluggable wire or solder connections
Includes mounting holes
Pin-out compatible with our other XBee Adapter boards
Partially assembled kit form for flexible configuration

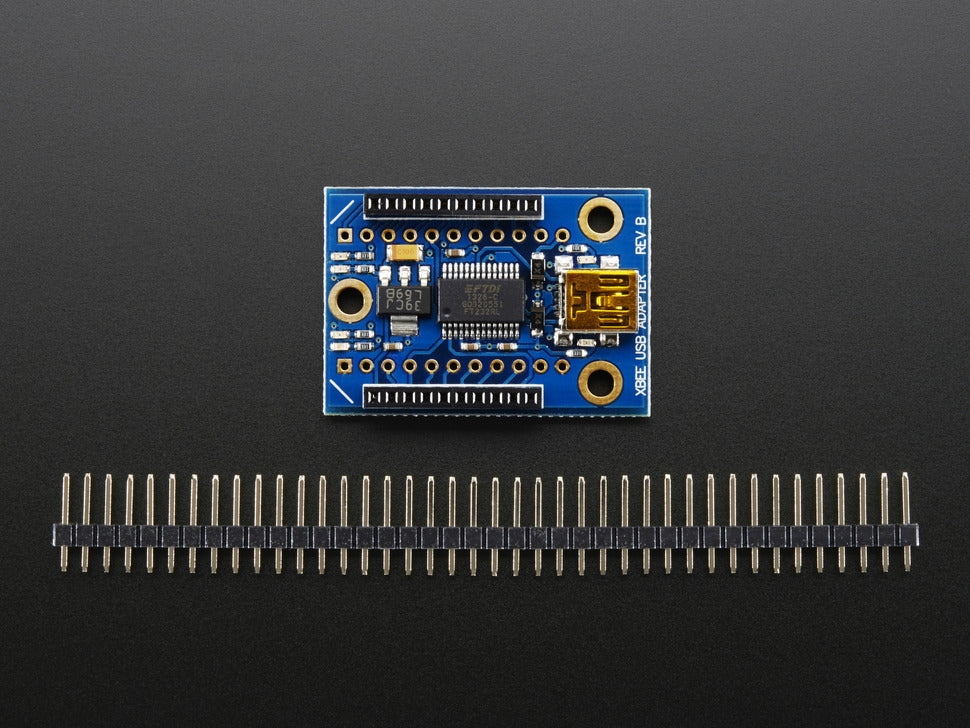

(1) XBee Adapter Board PCB
(2) 10-pin 2mm sockets - these are soldered into the board.
(1) 40-pin SIP header

Power requirements: 5.0V from USB or VDD pin, 3.3V generated on-board
Communication: Serial pass-through to XBee module/USB to Host PC
Dimensions: 1.51 x 1.00 x 0.58 in* (38.3 x 25.6 x 14.8 mm*)
* when headers are attached
Operating temp range: -40 to +158F (-40 to +70C)
Works with all XBee & Pro modules!

This product is available.
