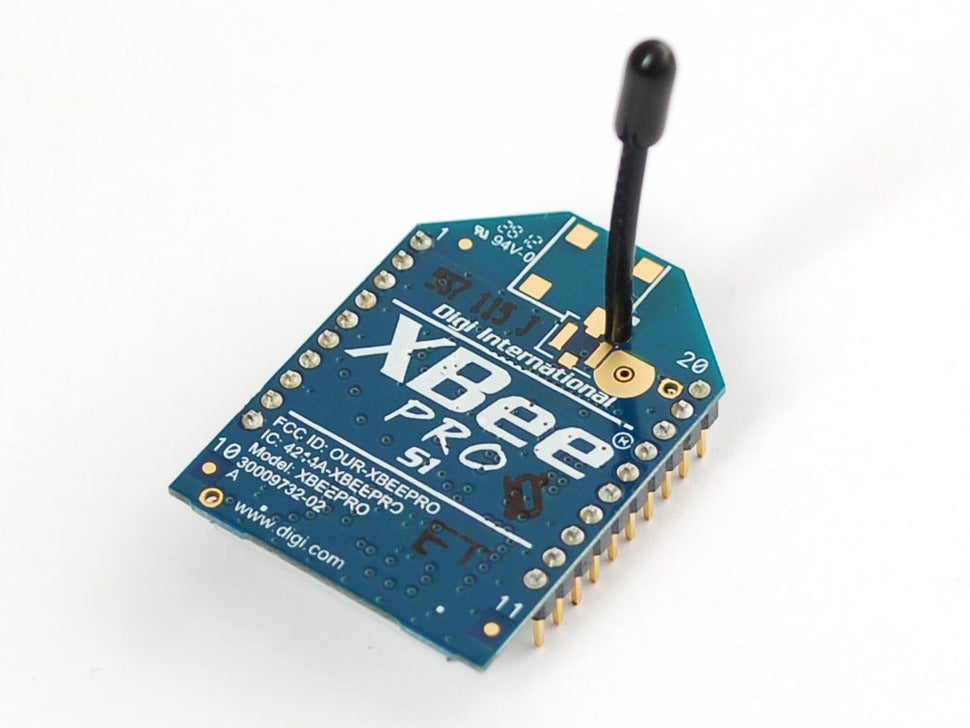

XBee Pro Module - Series 1 - 60mW with Wire Antenna
Digi XBee 802.15.4 modules are the easiest-to-use, most reliable and cost-effective RF devices we’ve experienced. The 802.15.4 XBee modules provide two friendly modes of communication – a simple serial method of transmit/receive or a framed mode providing advanced features. XBees are ready to use out of the package, or they can be configured through the X-CTU utility or from your microcontroller. These modules can communicate point to point, from one point to a PC, or in a mesh network.
You only need to choose an antenna style (PCB or wire) and power level (1 mW for up to 300 ft and 60 mW for up to 1 mile). The PCB antenna version provides a lower profile footprint for applications with limited space while the wire antenna version allows for more flexibility in adjusting for optimal range at the same output power. XBee 802.15.4 modules are cross-compatible with other 802.15.4 XBee modules, regardless of antenna type or power rating.
Key Features:
Outdoor range up to 1 mile (1.6 km) line of sight
Indoor range up to 300 feet (90 m)
Data rate up to 250 Kbps
2.4 GHz frequency band (accepted world-wide)
Remote Industrial Control and Monitoring
Long range remote control
Wireless data acquisition
Details:
Digital I/O lines
I/O line passing
Analog-to-digital conversion
12 channels
128-bit encryption
Voltage requirements: 2.8 to 3.4 VDC (reduced performance below 3.0V)
Current requirements: ~215 mA (transmit), ~55 mA (receive), <10 uA (sleep)
Communication: CMOS UART @ ~3.3V
Dimensions: 1.29" L x 0.96" W x 0.16" H (32.94 x 24.38 x 4.06 mm)
Operating temperature range: -40 to +185 °F (-40 to +85 °C)
