Universal Qi Wireless Charging Transmitter

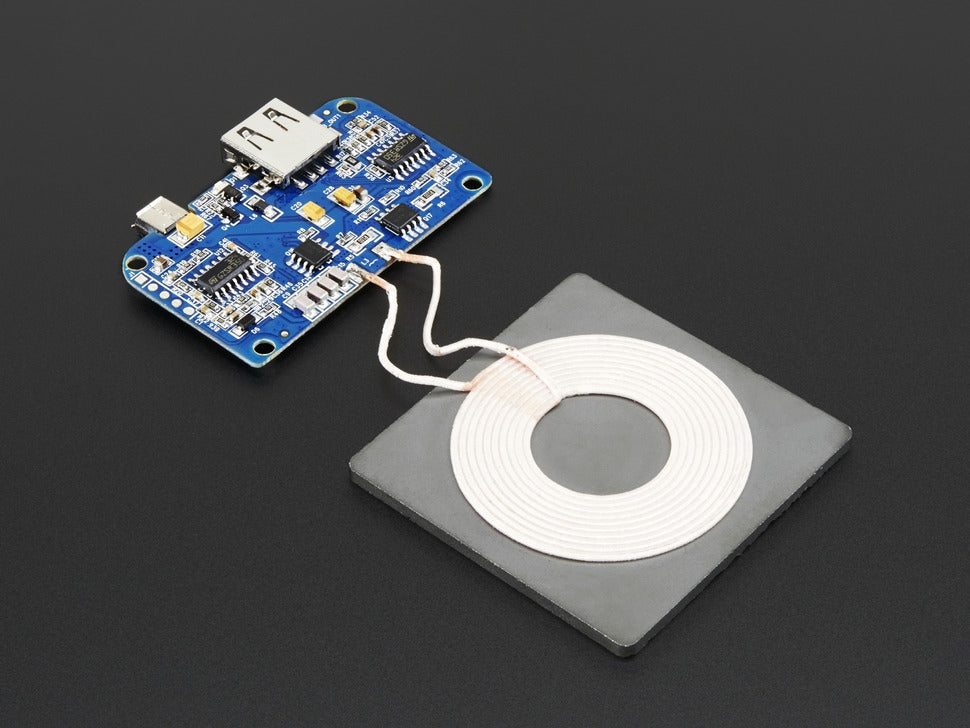

We've added a ton of Qi receivers but, until now, we haven't had a charging base. No longer! This is a super simple Qi transmitter. It will work with any standard Qi charger receivers - like the ones we carry here. You just connect the board to a 5v power supply - either through a micro USB port - then put your device w/ Qi receive onto the base. If you want to 'share' the microUSB power connection, you can also connect direct to the USB-A port
Maximum output is around 5W which is good for most smart phones, basically 1000mA charge at 5V on the other side of the wireless connection. It has a charging distance of 2-8mm, works with all our Qi charge receivers. You can only use one receiver per transmitter so if you want to charge two Qi devices at once, you'll need 2 transmitters.
Input Current: 2A
Maximum output power of 5W
Operating Frequency: 100-200Khz
Charging Distance: 2-8mm
Charging Plate Dimensions: 53mm x 53mm x 4mm / 2.1" x 2.1" x 0.2"
PCB Dimensions w/ Components: 55mm x 37mm x 6mm / 2.2" x 1.5mm x 0.2"
