Ultraviolet Sensor for Arduino

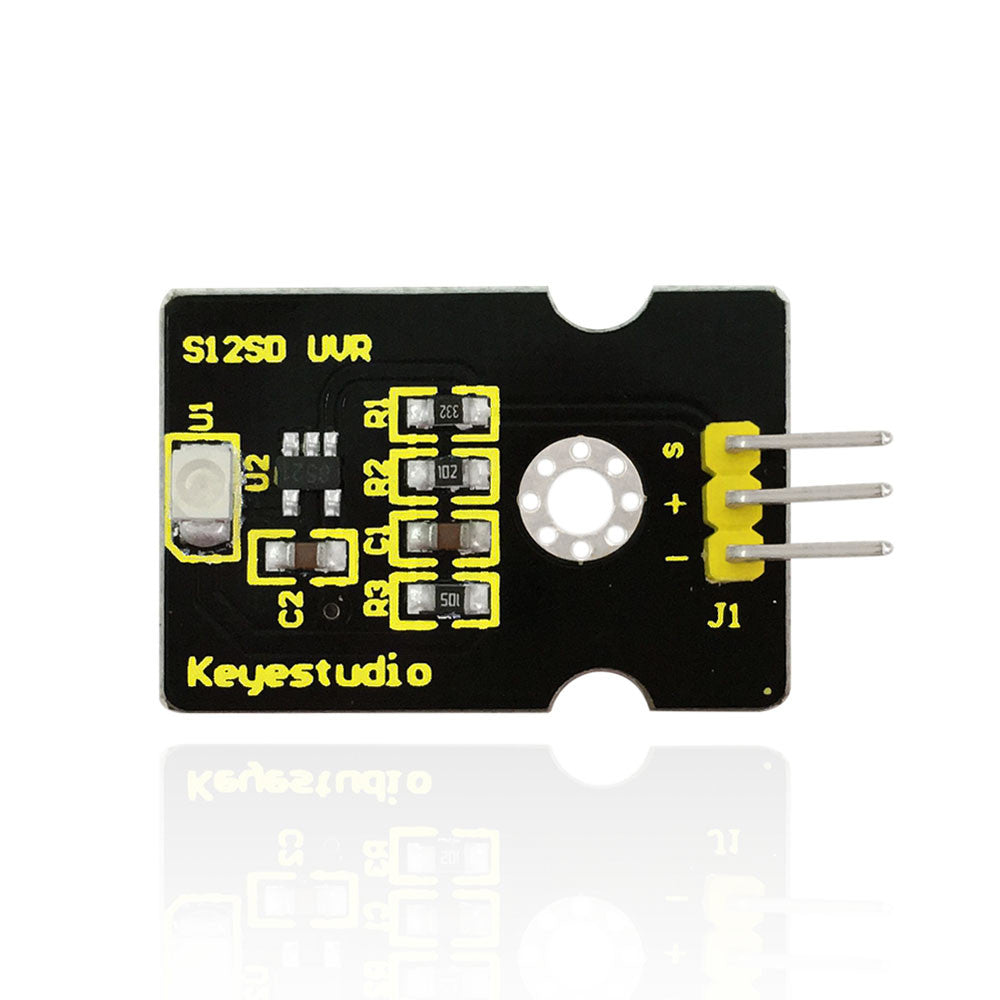

keyestudio GUVA-S12SD 3528 Ultraviolet Sensor is used to detect ultraviolet light. It includes GUVA-S12SD, applied to measure ultraviolet index of intelligent wearable device, such as watches,smart phone and outdoor device with UV index detecting. It still is used to monitor the intensity of ultraviolet light and as a UV flame detector when disinfecting things by ultraviolet light.

Performance Parameters
Size:15mm×30mm×0.7mm
Supply Voltage:2.5V～5V
Output Signal:Analog Signal
Parameters of GUVA-S12SD
Detecting Range of Spectrum:240-370nm
Active Region：0.076mm2
Responsivity:0.14A/W
Dark Current::1nA
Light Current:101~125nA UVA Light,1mW/cm2
