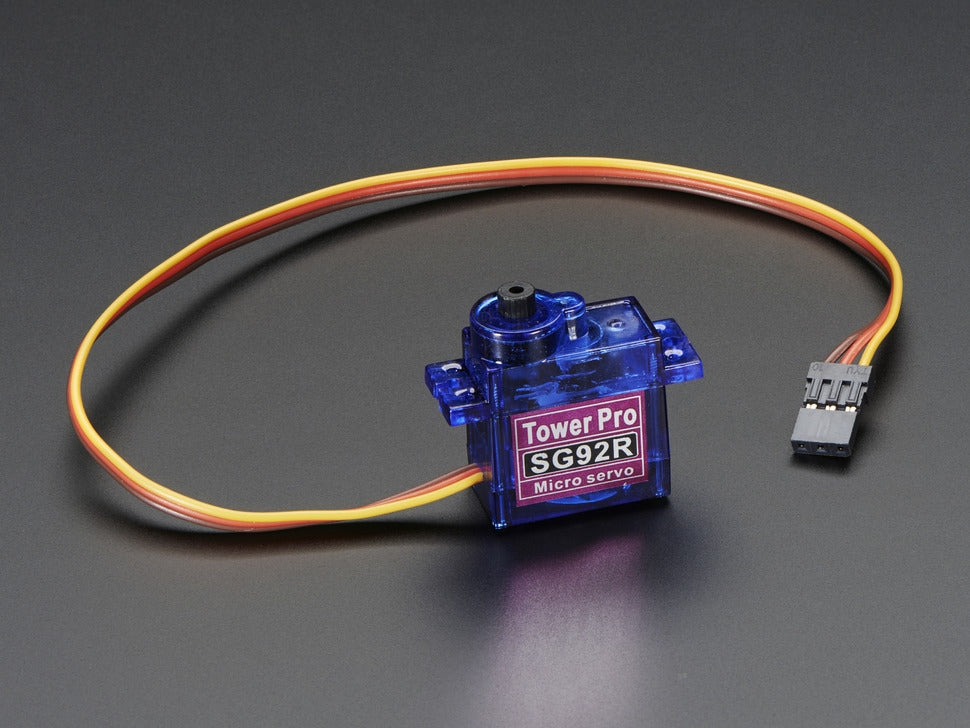

Tower Pro SG92R Micro servo

Tower Pro SG92R Micro servo

Regular price 3.250 KWD
Regular price Sale price 3.250 KWD
Sale Sold out

Out of stock

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.

Technical Details

Details:

Size : 23x11x29 mm
Voltage : 3V to 6V DC
Weight: 9g / 0.32oz
Speed : 0.12 sec/60 (at 4.8V)
Torque : 1.6 kg-cm
Working Temp : -30C~60C
Teflon Bushing, 19cm wire, coreless motor, servo arms & screw included
