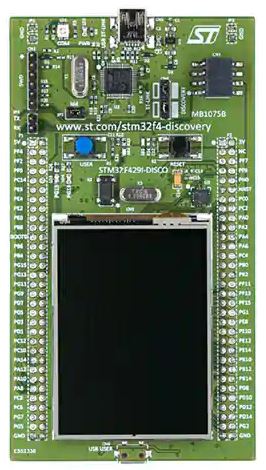

STM32F429 Discovery Kit

• STM32F429ZIT6 microcontroller featuring
2 Mbytes of Flash memory, 256 Kbytes of RAM
in an LQFP144 package

• 2.4" QVGA TFT LCD

• USB OTG with Micro-AB connector

• I3G4250D, ST MEMS motion sensor 3-axis
digital output gyroscope

• Six LEDs:
– LD1 (red/green) for USB communication
– LD2 (red) for 3.3 V power-on
– Two user LEDs: LD3 (green), LD4 (red)
– Two USB OTG LEDs: LD5 (green) VBUS
and LD6 (red) OC (over-current)

• Two push-buttons (user and reset)

• 64-Mbit SDRAM

• Extension header for LQFP144 I/Os for a quick
connection to the prototyping board and an
easy probing

• On-board ST-LINK/V2-B

• USB functions:
– Debug port
– Virtual COM port
– Mass storage

• Mbed Enabled™ (see http://mbed.org)

• Board power supply: through the USB bus or
from an external 3 V or 5 V supply voltage

• Comprehensive free software including a
variety of examples, part of STM32CubeF4
MCU Package or STSW-STM32138, for using
legacy standard libraries
