Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×76mm, 8.6V, 1 A/Phase
Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×76mm, 8.6V, 1 A/Phase
Regular price
20.750 KWD
Regular price
Sale price
20.750 KWD
Unit price
/
per
Out of stock

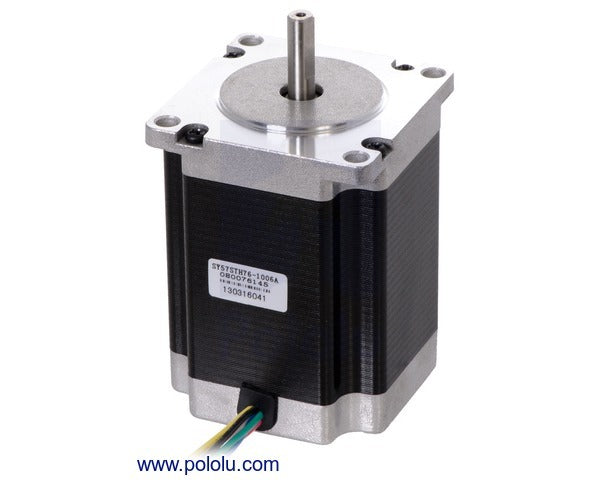

This NEMA 23-size hybrid stepping motor can be used as a unipolar or bipolar stepper motor and has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 8.6 V, allowing for a holding torque of 14 kg-cm (190 oz-in).
Specifications:
- Size: 56.4 mm square × 76 mm, not including the shaft (NEMA 23)
- Weight: 1 kg (35 oz)
- Shaft diameter: 6.35 mm (0.25″) “D”
- Steps per revolution: 200
- Current rating: 1 A per coil
- Voltage rating: 8.6 V
- Resistance: 8.6 Ω per coil
- Holding torque: 14 kg-cm (190 oz-in)
- Inductance: 14 mH per coil
- Lead length: 30 cm (12″)
- Output shaft supported by two ball bearings
