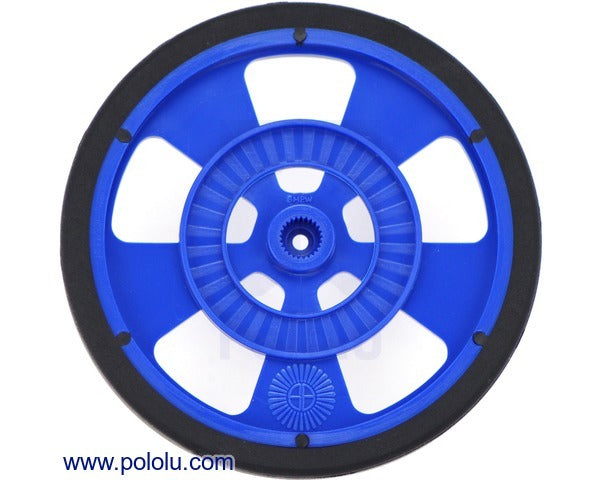

Solarbotics SW-LB BLUE Servo Wheel with Encoder Stripes, Silicone Tire

1.750 KD

This 2-5/8" plastic servo wheel fits on standard Futaba servos and has a diameter of 2-5/8". Each wheel has a silicone tire and 64-stripe encoder pattern molded in.


The Solarbotics SW wheel is compatible with standard Futaba servo hubs such as those on the SpringRC SM-S4303R and Power HD AR-3606HB
continuous rotation servos. The plastic wheel is molded from ABS and
has a molded-on thermoplastic silicone tire with great traction and wear
characteristics. There is a 64-strip encoder pattern on one side of
the wheel. The plastic wheels measure
just under 2-5/8" (69 mm) across by 0.3" (7.62 mm) wide.


Note: This Futaba servo wheel does not come with any mounting hardware. To mount the wheel, use the screw included with your servo.


Feature Summary

  • Diameter: just under 2-5/8" (69 mm)
  • Tire width: 0.3" (7.62 mm)
  • Tire: molded-on thermoplastic silicone
  • Encoder stripes: 64-strip pattern molded in on one side (compatible with the Wheel Watcher)


This product is available.
