4.500 KD

Designed by Raspberry Pi,
RP2040 features a dual-core Arm Cortex-M0+ processor with 264KB
internal RAM and support for up to 16MB of off-chip Flash. A wide
range of flexible I/O options includes I2C, SPI, and — uniquely — Programmable
I/O (PIO). These support endless possible applications for this small and
affordable package.

From controlling appliances

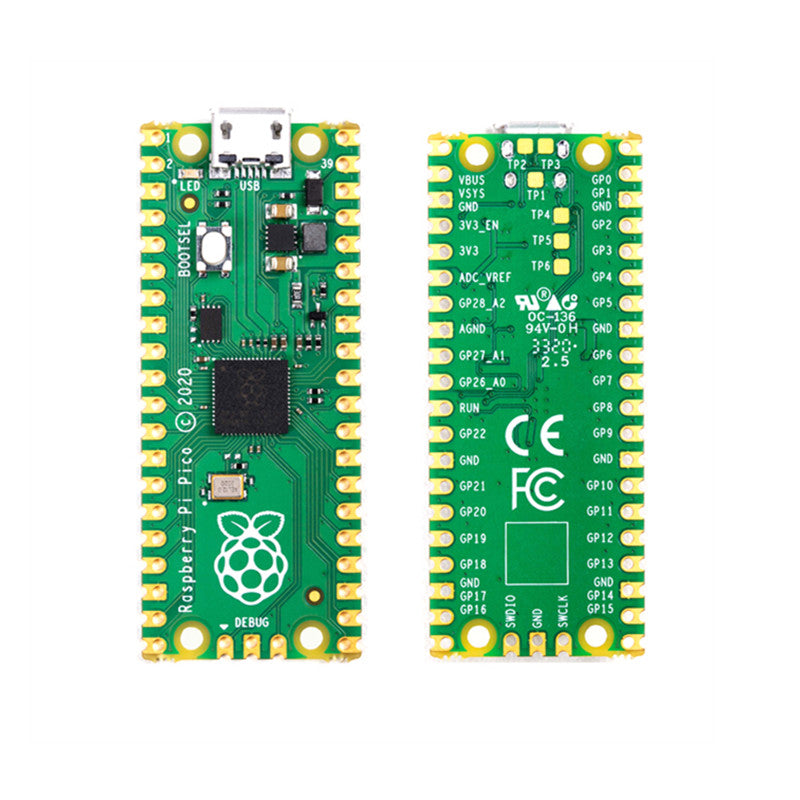

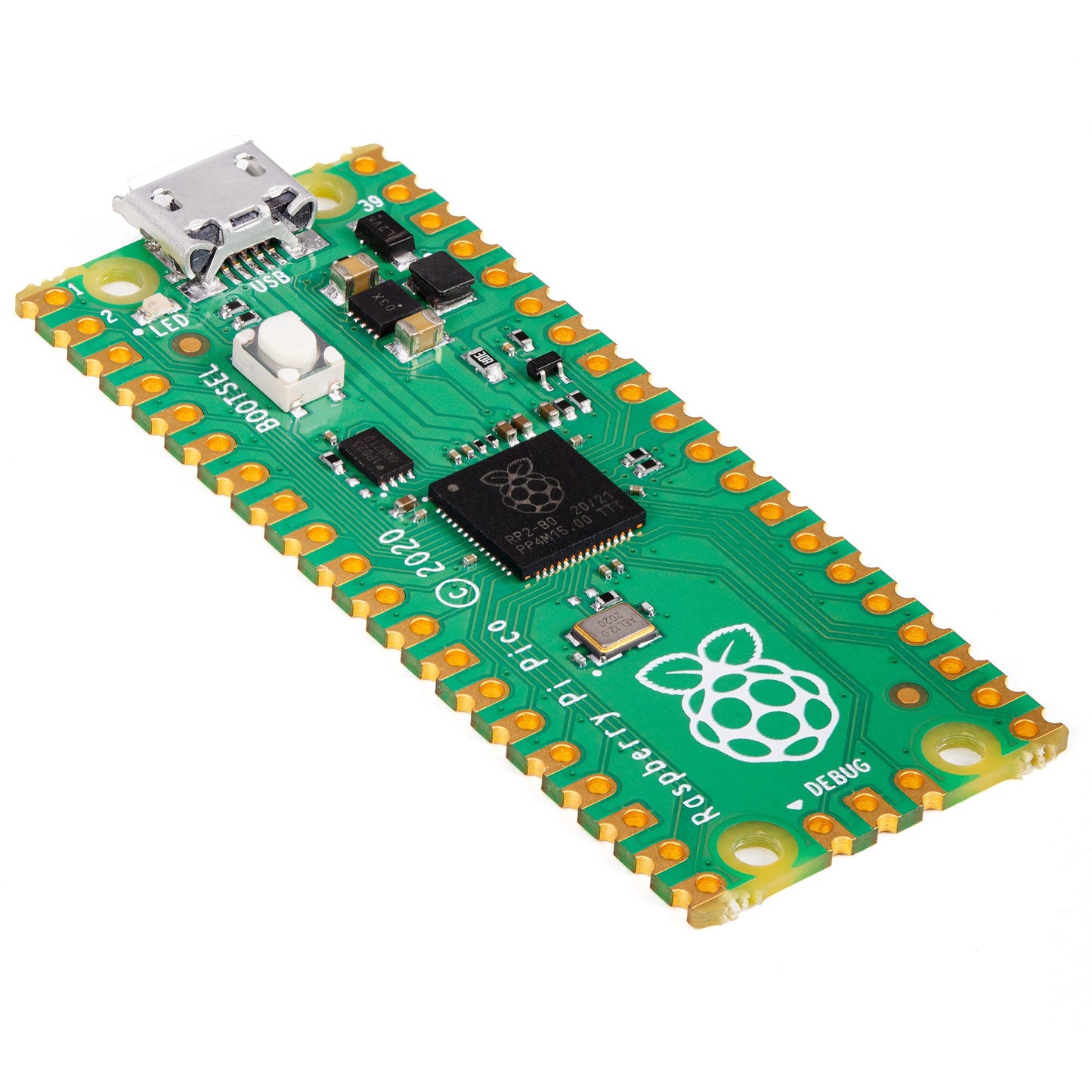

to operating a light display, Raspberry Pi Pico puts the technology that
underpins countless everyday operations into your hands.
Programmable in C and MicroPython,
Pico is adaptable to a vast range of applications and skill levels, and getting
started is as easy as dragging and dropping a file.
More experienced users can
take advantage of Raspberry Pi Pico’s rich peripheral set, including SPI, I2C,
and eight Programmable I/O (PIO) state machines for custom peripheral support.


  • 21 mm × 51 mm form factor
  • RP2040 microcontroller chip designed by Raspberry Pi in the UK
  • Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
  • 264KB on-chip SRAM
  • 2MB on-board QSPI Flash
  • 26 multifunction GPIO pins, including 3 analogue inputs
  • 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
  • 1 × USB 1.1 controller and PHY, with host and device support
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support
  • Supported input power 1.8–5.5V DC
  • Operating temperature -20°C to +85°C
  • Castellated module allows soldering direct to carrier boards
  • Drag-and-drop programming using mass storage over USB
  • Low-power sleep and dormant modes
  • Accurate on-chip clock
  • Temperature sensor
  • Accelerated integer and floating-point libraries on-chip
