Pololu RC Switch with Relay (Assembled)
Pololu RC Switch with Relay (Assembled)
2 in stock
This RC relay enables easy control of large, electrically isolated loads in radio control (RC) systems. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation. This assembled version ships with the 5V relay, terminal block, and straight male header pins soldered in, so it can be integrated into hobby RC systems without the need for additional soldering. The included power relay is an Omron G5LE-14-DC5 and is rated for up to 10 A under most conditions.
This product consists of a single-pole, double-throw (SPDT) power relay and a control circuit that measures incoming radio control (RC) signals, making it easy to control large, electrically isolated loads in RC systems. Example applications include using extra channels on an RC receiver or servo controller to turn on lights, motors, or irrigation valves.
The RC switch measures the width of incoming RC pulses and compares it to a user-configurable threshold (with ±64 µs of hysteresis) to decide whether to activate the relay. By default, the threshold is approximately 1700 μs, with switch activation occurring above the threshold (longer pulses), but the switch has a learning mode that allows you to change the threshold and the activation direction. A safe-start feature reduces the likelihood of unexpected activation.
We generally recommend using a 4- or 5-cell NiMH or NiCD battery pack to power the switch. The battery pack will typically be connected to an RC receiver or servo controller, which passes the power on to the RC switch.
The included relay is an Omron G5LE-14-DC5 (1MB pdf) and is rated for up to 10 A under most conditions.
Included hardware
The Pololu RC Switch with Relay is available in two versions:
The assembled version ships with the 5V Omron relay, header pins, and terminal block soldered in. A 1×2-pin male header and a shorting block are also included with the assembled version and can be used to configure the device. The assembled version can be incorporated into an existing RC system without the need for any additional soldering.
The partial kit version gives you the flexibility to choose different connections. It includes a 5V Omron relay, 0.1″ 12-pin male header, a 0.1″ 12-pin right-angle male header, a 3-pin terminal block, and a shorting block. These strips can be broken into smaller strips and optionally soldered to the board, or wires can be soldered directly to the board for the most compact installation.

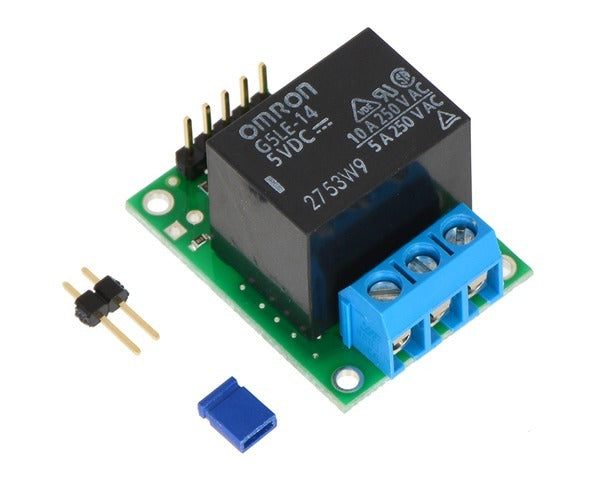

Pololu RC Switch with Relay (Assembled) with included hardware.
Pololu RC Switch with Relay (Partial Kit).
The board has four mounting holes that work with #2 or M2 screws (not included).
Advantages over similar products
Compact layout
User-configurable activation threshold and direction
Safe-start mode to reduce likelihood of unexpected activation
Zener diode for fast current decay on relay coil
Specification of electrical routing clearance rules on relay switch nodes (see user’s guide)
The RC switch provides feedback about what state it is in via a yellow indicator LED. Status information is also provided on two output pins:
The GOOD pin indicates the presence of a valid RC signal (10–330 Hz pulse rate, 0.5–2.5 ms pulse width).
The OUT pin indicates whether the relay is activated (i.e. the relay coil is energized).rmation about the Pololu RC Switch with Relay can be found in the user’s guide.
The Pololu RC Switch with Relay connected to a typical RC receiver.
Other RC switches
We offer an RC switch with a digital output for applications that just require a low-current digital signal, and we offer two versions of this switch with integrated MOSFETS instead of a relay: RC switch with a small MOSFET and RC switch with a medium MOSFET (the latter of which also has an integrated voltage regulator) .
