Pololu 9V, 2.3A Step-Down Voltage Regulator D24V22F9

Name: Pololu 9V, 2.3A Step-Down Voltage Regulator D24V22F9
Brand: Pololu
SKU: regulator
Price: 3.750 KWD
Availability: InStock

3.750 KWD

Sale Sold out

2 in stock

Quantity

Input voltage: 4 V to 36 V for the version that outputs 3.3 V
Fixed 3.3 V, 5 V, 6 V, 7.5 V, 9 V, or 12 V output (depending on regulator version) with 4% accuracy
Typical maximum continuous output currents between 1.4 A and 2.6 A
Typical efficiency of 85% to 95%, depending on input voltage, output voltage, and load
Switching frequency: ~400 kHz
Integrated reverse-voltage protection, over-current protection, over-temperature shutoff, and soft-start
1 mA typical no-load quiescent current; this can be reduced to approximately 5 µA to 10 µA per volt on VIN by disabling the board
“Power good” output indicates when the regulator cannot adequately maintain the output voltage

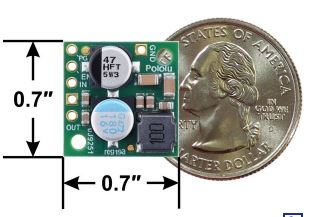

Compact size: 0.7″ × 0.7″ × 0.31″ (17.8 mm × 17.8 mm × 8 mm)
Two 0.086″ mounting holes for #2 or M2 screws
