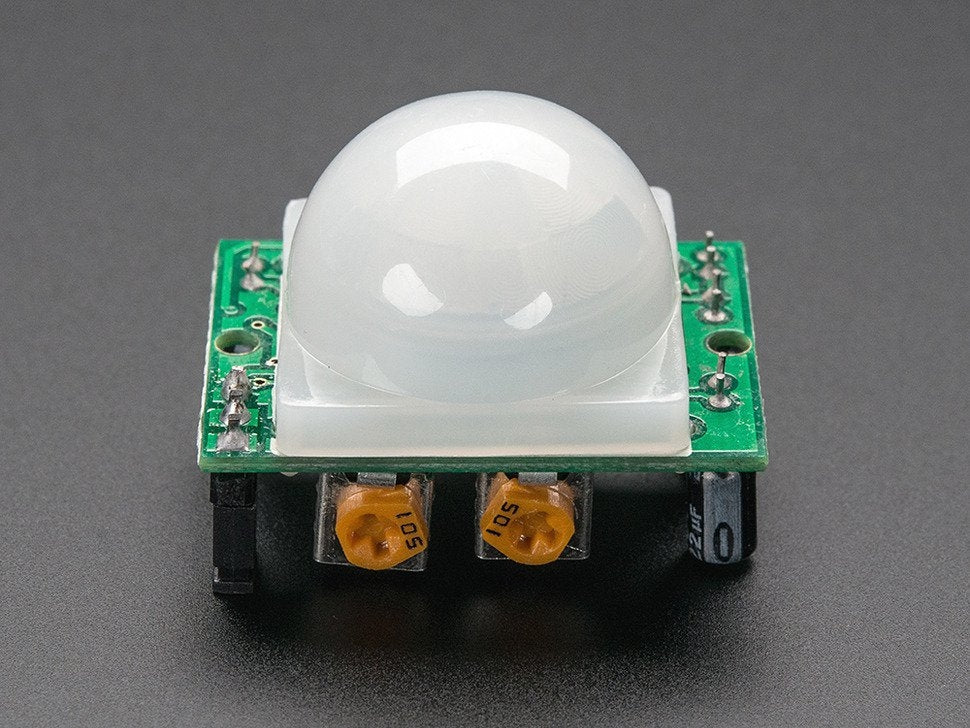

PIR motion sensor

4.750 KD

Runs on 5V-16V power (if you need to run it off of 3V you can do that by bypassing the regulator, but that means doing a bit of soldering). Digital signal output is 3.3V high/low. Sensing range is about 7 meters (120 degree cone)

For a full tutorial with wiring diagrams, code examples and project ideas, PIR sensor tutorial page!

Dimensions:

Length: 24.03mm/0.94in
Width: 32.34mm/1.27in
Screw hole distance: 28mm
Screw hole diameter: 2mm
Height (with lens): 24.66mm/0.97in
Weight: 5.87g/0.2oz

This product is available.
