MC33926 Motor Driver Carrier

11.000 KD

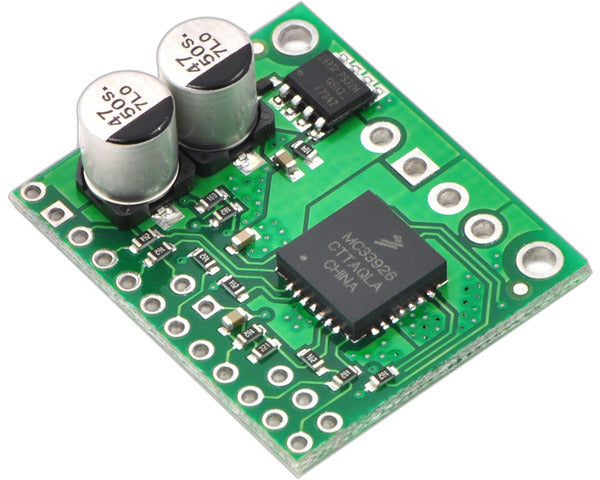

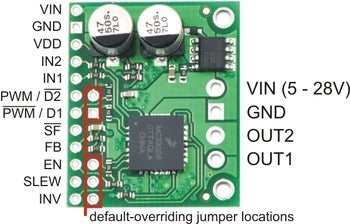

This breakout board for Freescale’s MC33926 full H-bridge has an operating range of 5 V to 28 V and can deliver almost 3 A continuously (5 A peak) to a DC motor. The MC33926 works with 3 V to 5 V logic levels, supports ultrasonic (up to 20 kHz) PWM, and features current feedback, under-voltage protection, over-current protection, and over-temperature protection.

This product is available.
