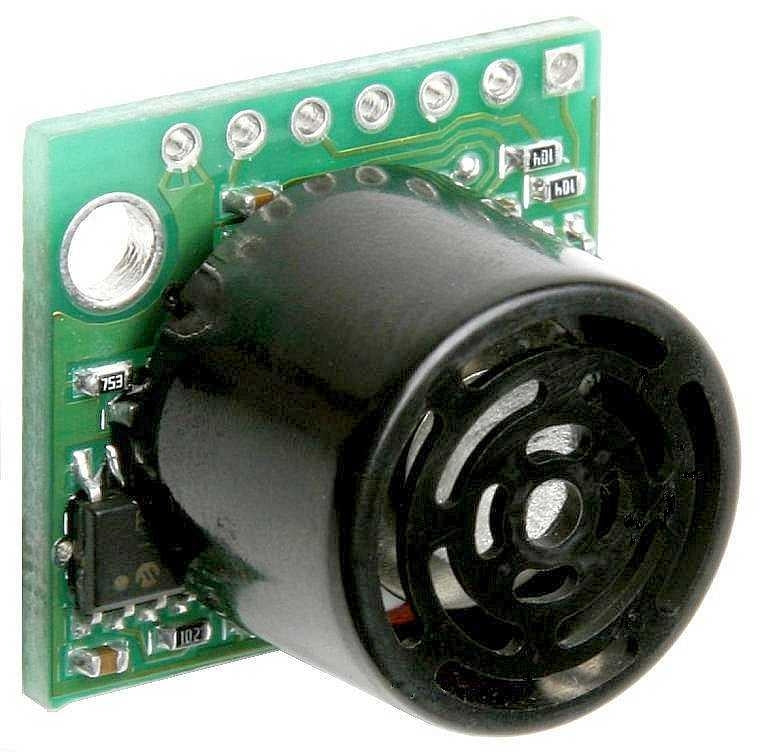

Maxbotix LV-MaxSonar-EZ2 Sonar Range Finder MB1020

Sold out
10.000 KD

This compact sonar range finder by Maxbotix detects objects from 0 to 6.45 m (21.2 ft) with a resolution of 2.5 cm (1") for distances beyond 15 cm (6"). Unlike other sonar range finders, the LV-MaxSonar has virtually no dead zone: it can detect even small objects up to and touching the front sensor face!

The EZ0, EZ2, EZ3, and EZ4 versions have progressively narrower beam angles.


Size: 0.870" x 0.786" x 0.645"
Weight: 4.3 g

General specifications

Resolution: 2.5 cm
Maximum range: 6.45 m
Minimum range: 0 m1
Sampling rate: 20 Hz
Baud: 9600
Minimum operating voltage: 2.5 V
Maximum operating voltage: 5.5 V
Supply current: 2 mA


Objects closer than 15 in are reported as 15 in.
