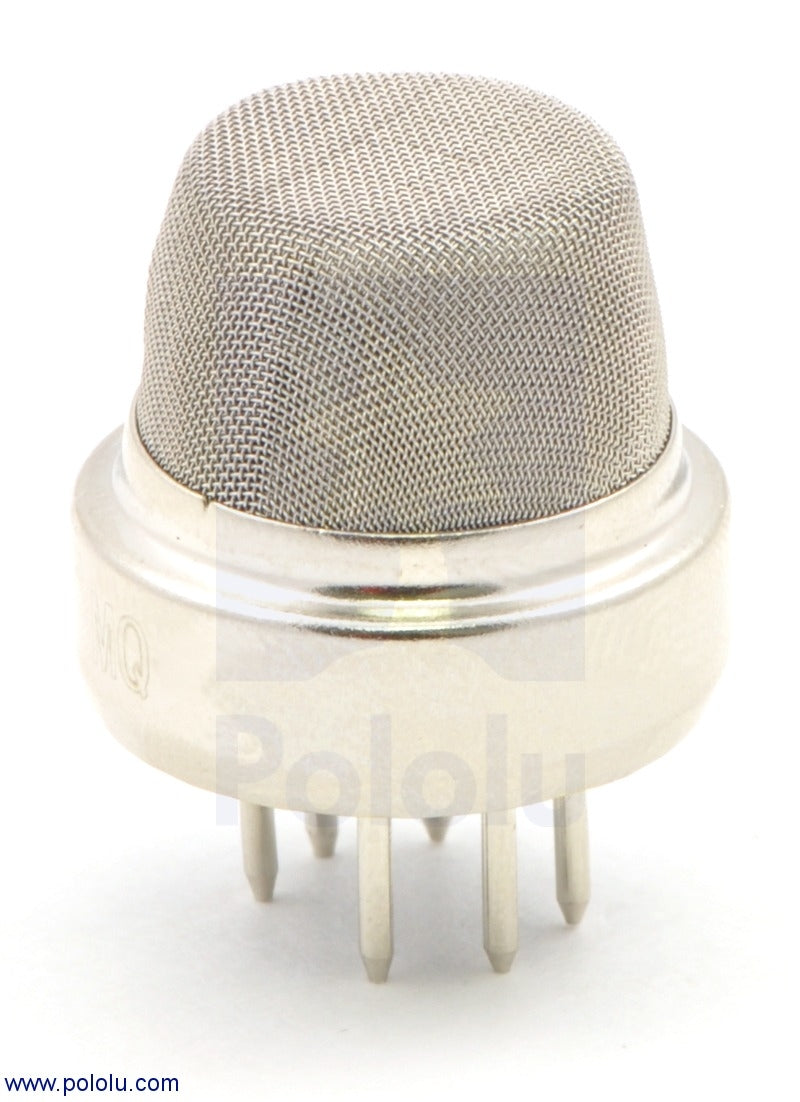

Flammable Gas & Smoke Sensor MQ-2

Overview

This flammable gas and smoke sensor detects the concentrations of combustible gas in the air and ouputs its reading as an analog voltage. The sensor can measure concentrations of flammable gas of 300 to 10,000 ppm.The sensor can operate at temperatures from -20 to 50°C and consumes less than 150 mA at 5 V.

Connections

Connecting five volts across the heating (H) pins keeps the sensor hot enough to function correctly. Connecting five volts at either the A or B pins causes the sensor to emit an analog voltage on the other pins. A resistive load between the output pins and ground sets the sensitivity of the detector.

Pololu MQ gas sensor carrier with sensitivity-setting resistor soldered in the vertical orientation.
