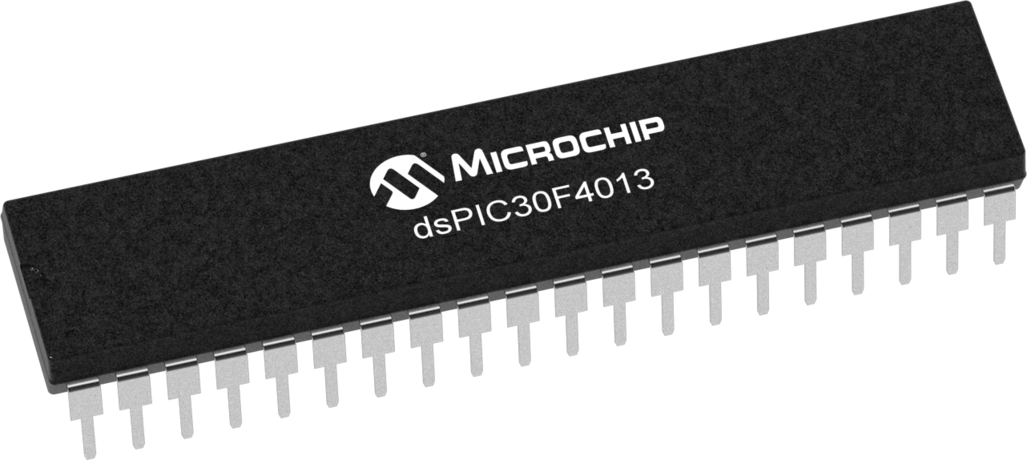

dsPIC30F4013 microcontroller
3.000 KD
- High-Performance dsPIC30F core
- Modified Harvard architecture
- C compiler optimized instruction set architecture
- 24-bit wide instructions, 16-bit wide data path
- Up to 30 MIPS operation
- DSP Engine for math intensive operations
- Modulo and Bit-Reversed Addressing modes
- Two, 40-bit wide accumulators with optional saturation logic
- 17-bit x 17-bit single cycle hardware fractional/ integer multiplier
- Single cycle Multiply-Accumulate (MAC) operation
- 40-stage Barrel Shifter
- Dual data fetch
- Operating Conditions
- Wide operating voltage range (2.5V to 5.5V)
- Industrial and Extended temperature ranges
- Peripheral Features
- High current sink/source I/O pins: 25 mA/25 mA
- Optionally pair up 16-bit timers into 32-bit timer modules
- 3-wire SPI™ modules (supports 4 Frame modes)
- I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing
- Addressable UART modules with FIFO buffers and selectable pins
- Data Converter Interface (DCI) supports common audio Codec protocols, including I2S and AC’97
- CAN bus module compliant with CAN 2.0B standard
- Analog Features
- 12-bit 200 Ksps Analog-to-Digital Converter (A/D)
- A/D Conversion available during Sleep and Idle
- 1 Sample/Hold
- Multiple Conversion Sequencing Options
- Special Microcontroller Features
- Enhanced Flash program memory with 10,000 erase/write cycle (min.) for industrial temperature range, 100K (typical)
- Data EEPROM memory with 100,000 erase/write cycle (min.) for industrial temperature range, 1M (typical)
- Self-reprogrammable under software control
- Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
- Flexible Watchdog Timer (WDT) with on-chip low power RC oscillator for reliable operation
- Fail-Safe clock monitor operation
- Detects clock failure and switches to on-chip low power RC oscillator
- Programmable code protection
- In-Circuit Serial Programming™ (ICSP™)
- DC to 40 MHz external clock input
- Internal FRC input with PLL active (4x, 8x, 16x)
- 4 MHz-10 MHz oscillator input with PLL active (4x, 8x, 16x)
- 10 MHz - 20 MHz oscillator input in HS/2 or HS/3 with PLL active (4x, 8x, 16x)
- Programmable Brown-out Detection and Reset generation
- Sleep, Idle and Alternate Clock modes for power management
