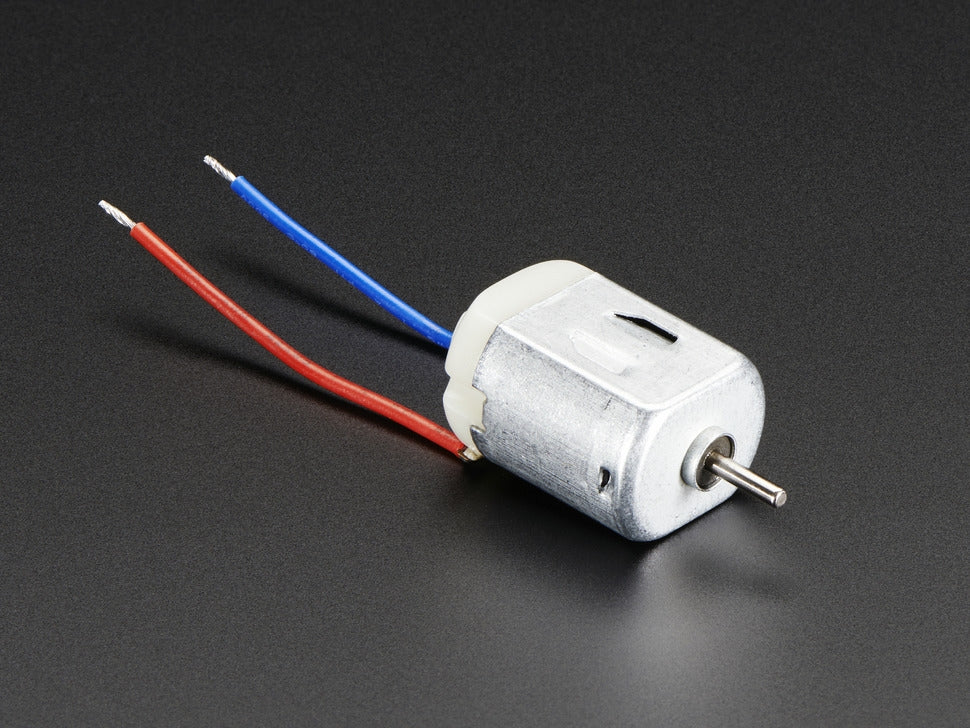

DC Toy / Hobby Motor

1.000 KD

This range makes them perfect for controlling with an Adafruit Motor Shield, or with an Arduino where you are more likely to have 5 or 9V available than a high current 3V setting. They'll fit in most electronics that already have 130-size motors installed and there's two breadboard-friendly wires soldered on already for fast prototyping

Operating Temperature: -10°C ~ +60°C

Rated Voltage: 6.0VDC

Rated Load: 10 g*cm

No-load Current: 70 mA max

No-load Speed: 9100 ±1800 rpm

Loaded Current: 250 mA max

Loaded Speed: 4500 ±1500 rpm

Starting Torque: 20 g*cm

Starting Voltage: 2.0

Stall Current: 500mA max

Body Size: 27.5mm x 20mm x 15mm

Shaft Size: 8mm x 2mm diameter

Weight: 17.5 grams
