ACS714 Current Sensor Carrier -5A to +5A

3.750 KD

This current sensor is a carrier board or breakout board for Allegro’s ACS714LLCTR-05B-T Hall effect-based linear current sensor; we therefore recommend careful reading of the ACS714 datasheetbefore using this product. The sensor operates at 5 V and has an output sensitivity of 185 mV/A. The board ships fully populated with its SMD components, including the ACS714, as shown in the product picture. The following list details some of the sensor’s key features:

  • Designed for bidirectional input current from -5 A to 5 A (though the robust sensor IC can survive up to five times the overcurrent condition).
  • Conductive path internal resistance is typically 1.2 mΩ, and the PCB is made with 2-oz copper, so very little power is lost in the board.
  • Use of a Hall effect sensor means the IC is able to electrically isolate the current path from the sensor’s electronics (up to 2.1 kV RMS), which allows the sensor to be inserted anywhere along the current path and to be used in applications that require electrical isolation.
  • 80 kHz bandwidth that can optionally be decreased by adding a capacitor across the board pins marked “filter”.
  • High accuracy and reliability: typical total output error of ±1.5% at room temperature with factory calibration, an extremely stable output offset voltage, and almost zero magnetic hysteresis.
  • Automotive-grade operating temperature range of -40°C to 150°C.

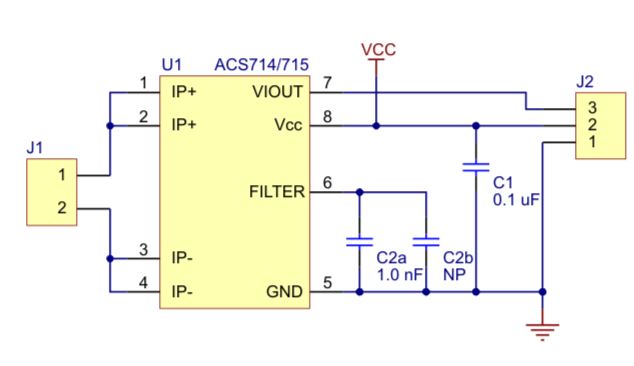

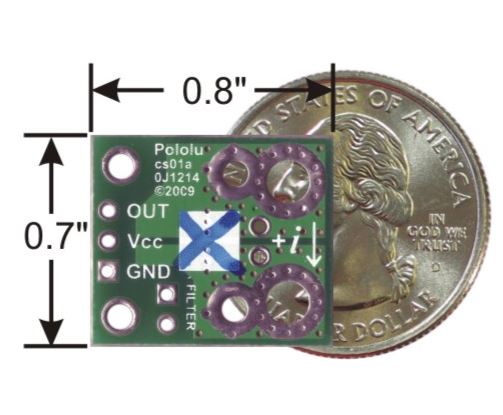

The pads are labeled on the bottom silkscreen, as shown in the picture to the right. The silkscreen also shows the direction that is interpreted as positive current flow via the +iarrow.

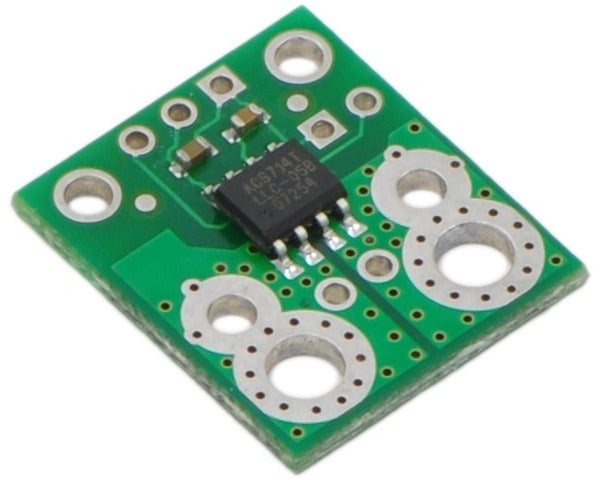

Like almost all our carrier boards, this sensor ships assembled with all of its required surface mount components, as shown in the main product picture.

This version is marked with ablue X. We also sell a±30A bidirectional versionof this board; you can distinguish these versions by reading the text on the IC or by looking at the color of the X on the bottom silkscreen.

Warning: This product is intended for use below 30 V. Working with higher voltages can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and protective gear.
