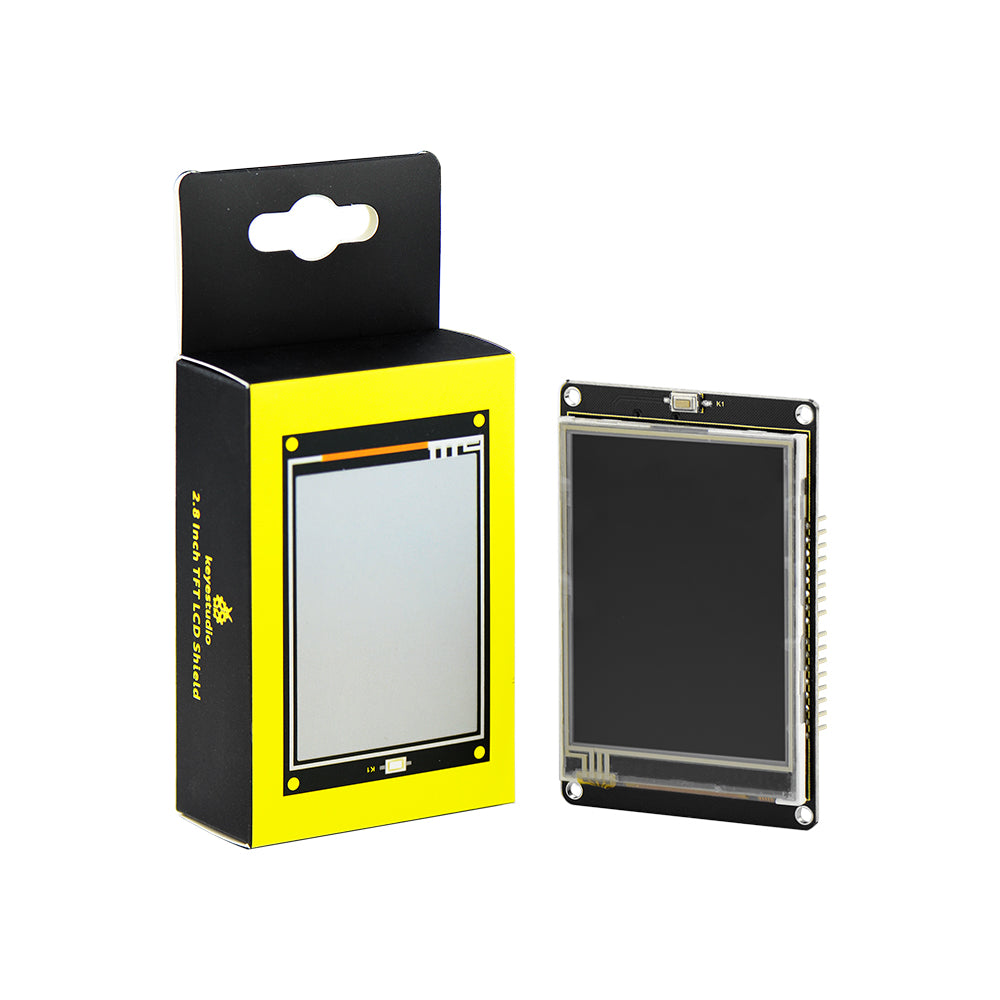

2.8" TFT Touch Screen for Arduino Uno

This is a 2.8 inch TFT LCD touch shield with the drive chip of ILI9325, compatible with Arduino UNO R3. It is very easy and convenient for you to stack it on the top of Arduino UNO R3 when using it. The white button on the shield actually is the reset button.

Performance Parameters

240xRGBx320 Dots TFT Transmissive Dot Matrix LCD Module

Driving duty:1/240 Duty

2.8”(COG type).

Viewing Angle:12:00 o’clock

ILI9325 LCD Driver or equivalent

Logic voltage:2.8V-3.3V

Data interface:80 system 8/16bit bus interface

TFT LCD Shield:8 bit bus Mode

Touch panel

White backlight

Power supply:DC 5V
